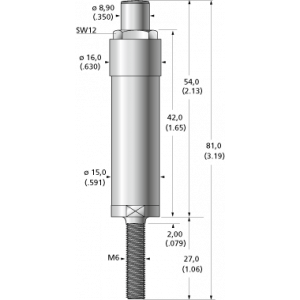

FK-052 / 100 A

Length81,00 mm
Spring force17,0 N
Spring preload6,0 N
Maximum travel12,10 mm
Max. current (cont.)100 A
Max. impulse current4 kA
Typical electrical resistance1,0 mOhm
Max. allowed body temperatur+150 °C
Max. tightening torque5,0 Nm
Tool sizeSW 12

*Version FK-152 features a higher continuous current rating of 150A.
